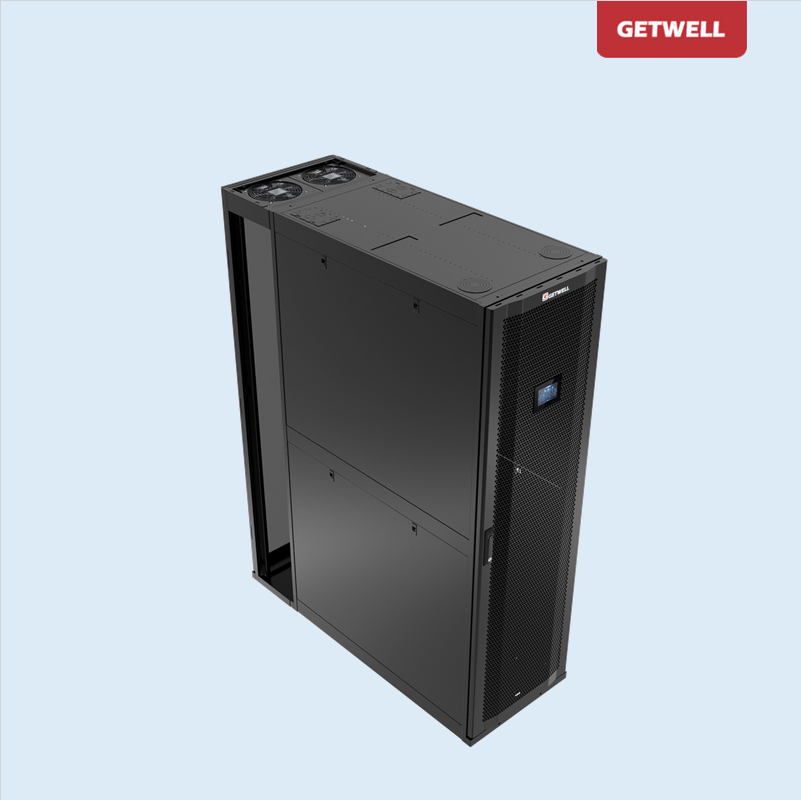

GMA Intelligent Cabinet Dedicated to Computing Power Micro - modules

Adopting a brand - new GMA cabinet architecture, it is an integrated closed hot - aisle enclosed dedicated rack. The front door is designed with a high - density honeycomb mesh door, and the ventilation rate reaches 76% of the ventilation area. The front door is pre - installed with a TFC 4.3 - inch intelligent control screen, which can collect and accurately detect the temperature and humidity at 3 points (upper, middle and lower) in the hot zone, supporting the precise detection of the micro - environment in the high - computing - power machine room. The rear door is an advanced all - glass sealed door. The hot - aisle enclosure supports the independent snap - opening of each door. Both ordinary locks and intelligent locks can be installed to achieve one - key snap - opening, preventing high temperatures and overheating.

※4.3" Color Capacitive Touch Screen Parameters

Technology: a-Si TFT-LCD

Resolution: 800(RGB)×480 (WVGA)

Aspect Ratio: 16:9 (W:H)

Display Area: 95.04×53.856 mm (W×H)

Overall Dimensions: 143×107 mm (W×H)

Viewing Angles: 80/80/80/80 (Typ.)(CR≥10)

Colors: 16.2M, 50% NTSC

※Micro Temperature & Humidity Sensor

Sensor Model: SHT40

Temperature Range: -20°C to 70°C

Temperature Accuracy: ±0.2°C

Humidity Range: 0–100%RH (non-condensing)

Humidity Accuracy: ±1.8%RH

※Door Magnetic Sensor Switch

Housing: Zinc-aluminum alloy casting with reed switch sensor

Temperature Range: -20°C to 70°C

Switch Signal: Normally Closed (NC)

Max Load Power: ≤3W

Max Current: 500mA

※Intelligent Exhaust System

Control Logic: The temperature sensors inside the hot aisle collect data and transmit it to the power environment

monitoring system. The system sets two temperature thresholds: When the real-time temperature exceeds Threshold 1

(typically set at 40°C), the exhaust fans activate to discharge heat. This temperature ensures the return air to the air

conditioner falls within its highest cooling efficiency range,reducing overall module power consumption.

※Technical Specifications:

Fan: 180mm axial fan, 2800r/min

Operating Range: -20°C to 70°C

Single Fan Airflow: 1050 m³/h

Dual-Fan Airflow: 2100 m³/h

Power: AC220V, 76W×2

Air Pressure: 80Pa
